Roller guide and twist pipe

Technical Specification

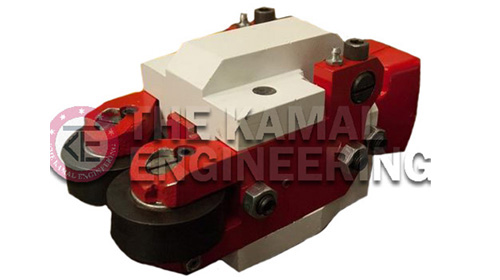

ROLLER GUIDE BOX

Roller guide box is essentially required to guide the rolled stock among passes for better yield and bare minimum deflection rate resulting lesser cobble & rejection rate.

Constructional Details:
1.) High strength investment cast stainless steel construction resists fatigue, wear & tear corrosion.
2.) Precise independent roller gap adjustment for exact contouring of incoming product.
3.) Independent roller holder height adjustment.
4.) High strength, robust construction minimizes deflection of rolled stock.
5.) High load capacity tapered roller bearings.
6.) Tool steel rollers for long life and ease of re-conditioning.
7.) Independent direct bearing lubrication by air /oil or grease.
8.) Independent direct water cooling minimizes roller wear and extends bearing life.

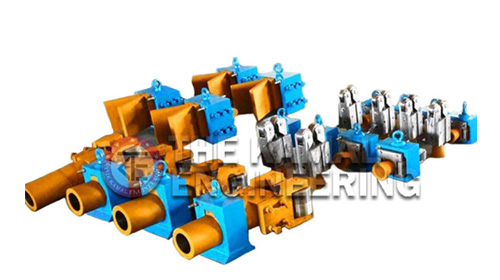

TWIST PIPE

Twist pipe is essentially required to guide the rolled stock among passes for better yield and bare minimum deflection rate. The twist roller guides with single point symmetrical roller adjustment for optimized setting precision and prompt twisting of the rolled stock. Guides are suitable for cassette and base mounting and are ideal for horizontal and vertical stands.
